3D JPS Pathfinding (base on `JPSAABBEnv`)

This document describes how to perform 3D JPS using the JPSAABBEnv class. JPSAABBEnv provides high‑precision collision detection through CGAL’s AABB tree.

Features

`JPSAABBPathFinder` Class

/// JPSAABBPathFinder extends the JPSAABBEnv environment for 3D pathfinding
class JPSAABBPathFinder : public JPSAABBEnv
{
public:
    JPSAABBPathFinder(
        const std::unordered_map<size_t, SCData>& SCMap,
        const std::unordered_map<size_t, EFData>& EFMap
    );
    /**
     * Executes JPS graph search between two 3D points
     * @param startPoint  Starting position;
     * @param endPoint    Ending position;
     * @return A sequence of 3D integer grid coordinates representing the found path
     */
    std::vector<Eigen::RowVector3i> JPSGraphSearch(
        const Eigen::RowVector3d& startPoint,
        const Eigen::RowVector3d& endPoint
    );
    }

⚠️Critical Constraint:

Both startPoint and endPoint must lie within the navigable space defined by SCMap.
Neither startPoint nor endPoint must be located inside any obstacle volume defined by EFMap.

Example Usage

1. Data Preparation

This example uses testdata_simple.json from the repository.

Load the navigable‑corridor volumes (SCMap) and obstacle volumes (EFMap) from the JSON file.

// Load navigable‑corridor volumes (SCMap) and obstacle volumes (EFMap)
const auto& [SCMap,EFMap] = loadVolumeMaps("./testData/testdata_simple.json");

// Define start/end points within bounds and outside obstacles
Eigen::RowVector3d startPoint(748876.1520, 2564890.4544, 65.5);
Eigen::RowVector3d endPoint(748678.2699, 2564651.6236, 50.0761);

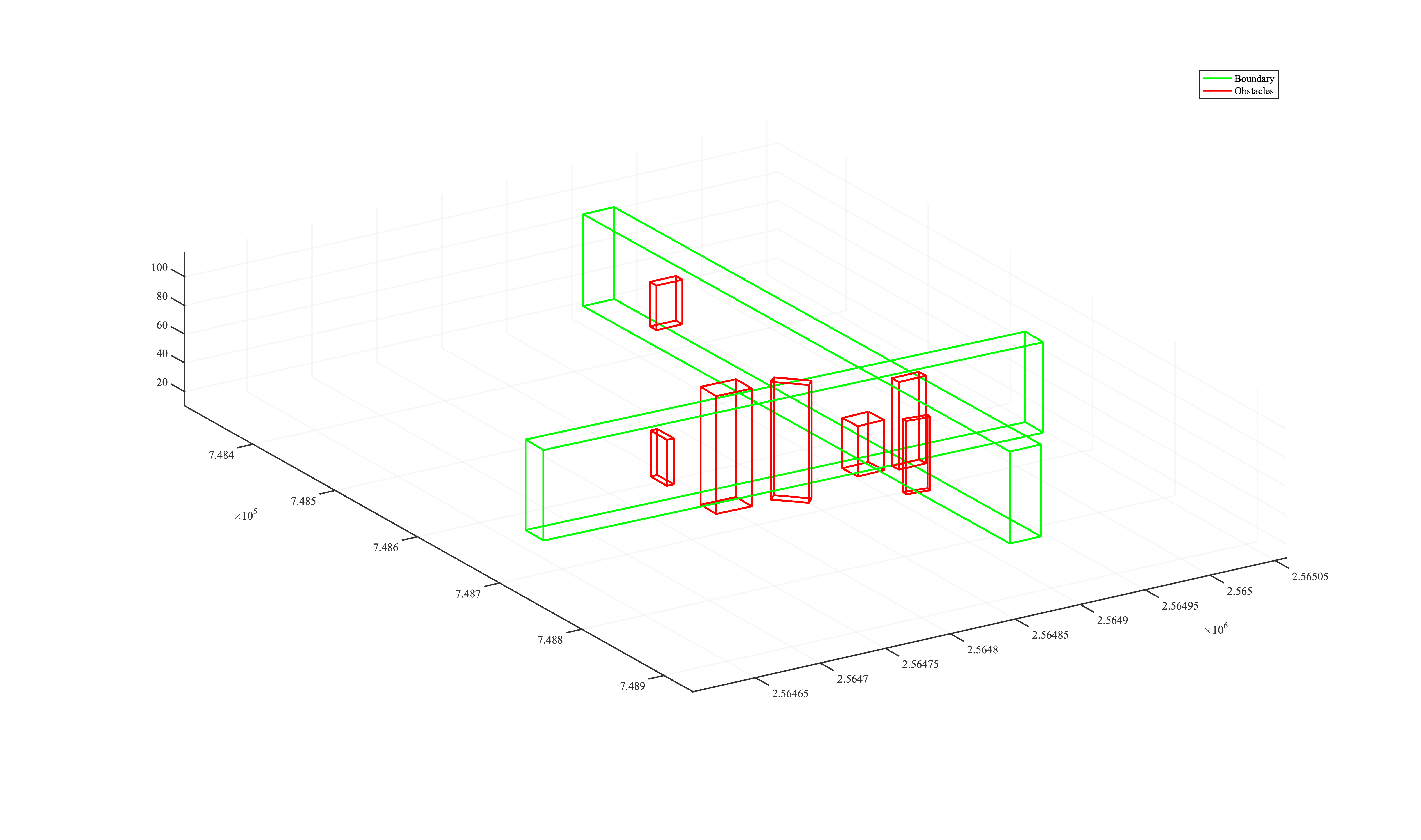

The following map illustrates terrain features, including obstacle zones and the navigable corridor boundaries:

2. Environment Initialization

Next, initialize the JPSAABBPathFinder class with the loaded spatial data.

During construction, the class builds a CGAL‑based DetectionObjects structure (AABB tree) and stores it as a private member. This structure is later used to test whether a candidate point lies inside the corridor, on its boundary, or within an obstacle.

// Initialize pathfinder with collision detection structures
JPSAABBPathFinder _JPSAABBPathFinder(SCMap, EFMap); // Constructs AABB trees for spatial queries

3. Path Search Execution

With the environment initialized, you can now execute JPS between the start and end points:

// Perform JPS search
const auto& bestPath = _JPSAABBPathFinder.JPSGraphSearch(startPoint, endPoint);

4. Results

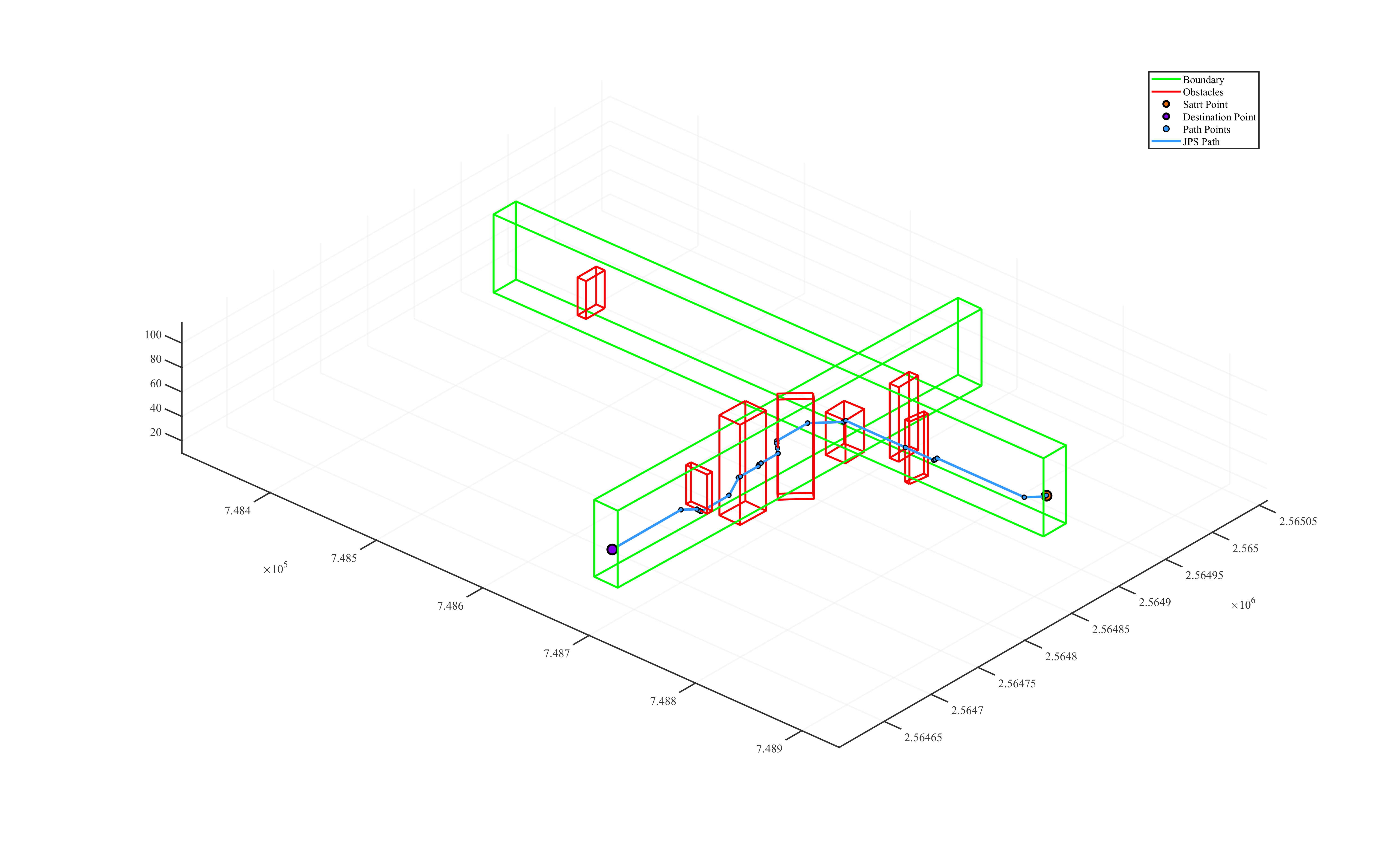

The resulting path is a sequence of 3D grid coordinates representing the optimal trajectory. The figure below visualizes the output:

Obstacles: Represented in red.
Navigable corridor: Shown in green.
JPS path: Displayed as a blue polyline.

Complete Implementation

#include "Prepare.h"
#include "JPSAABBEnv.h"
#include <chrono>

int main() {
    // Load spatial data
    const auto& [SCMap,EFMap] = loadVolumeMaps("./testData/testdata_simple.json");

    // Define start / end points
    Eigen::RowVector3d startPoint(748876.1520, 2564890.4544, 65.5);
    Eigen::RowVector3d endPoint(748678.2699, 2564651.6236, 50.0761);

    // Initialise path‑finder (constructs AABB trees)
    JPSAABBPathFinder _JPSAABBPathFinder(SCMap, EFMap);

    // Perform JPS search and measure execution time
    auto t0 = std::chrono::high_resolution_clock::now();
    const auto& bestPaths = _JPSAABBPathFinder.JPSGraphSearch(startPoint, endPoint);
    auto t1 = std::chrono::high_resolution_clock::now();

    auto duration = std::chrono::duration_cast<std::chrono::milliseconds>(t1 - t0);
    std::cout << "JPSAABBPathFinder execution time: " << duration.count() << " ms" << std::endl;

    return 0;
}

3D JPS Pathfinding (base on JPSAABBEnv)
