computePlaneNormal

This document describes a function that calculates the unit normal vectors of a 3D plane defined by a set of coplanar points.

---

Function Signature

std::pair<Eigen::RowVector3d, Eigen::RowVector3d> computePlaneNormal(
    const Eigen::MatrixX3d& planePoints
);

---

Parameters

• planePoints: Matrix of 3D points (Eigen::MatrixX3d), each row represents a point lying on the same plane. The matrix must contain at least three coplanar points.

---

Return Value

• std::pair<Eigen::RowVector3d, Eigen::RowVector3d>:

  first: A unit normal vector perpendicular to the plane defined by planePoints.

  second: The opposite unit normal (the negation of the first).

---

Example Usage

#include "LiteGeometry.h"

int main() {
    Eigen::Matrix<double,4,3> Vertices;
    Vertices << 748694.4250704022, 2564734.3476669602, 49.5,
        748674.4539194419, 2564739.5306861168, 81.5,
        748674.4154279609, 2564734.5007915981, 49.5,
        748694.4635618832, 2564739.3775614789, 81.5;

    const auto& [v1, v2] = computePlaneNormal(Vertices);
    std::cout << "[computePlaneNormal] Result:\n";
    std::cout << "  Normal Vector 1 (v1): " << v1.format(Eigen::FullPrecision) << "\n";
    std::cout << "  Normal Vector 2 (v2): " << v2.format(Eigen::FullPrecision) << "\n\n";

    return 0;
}

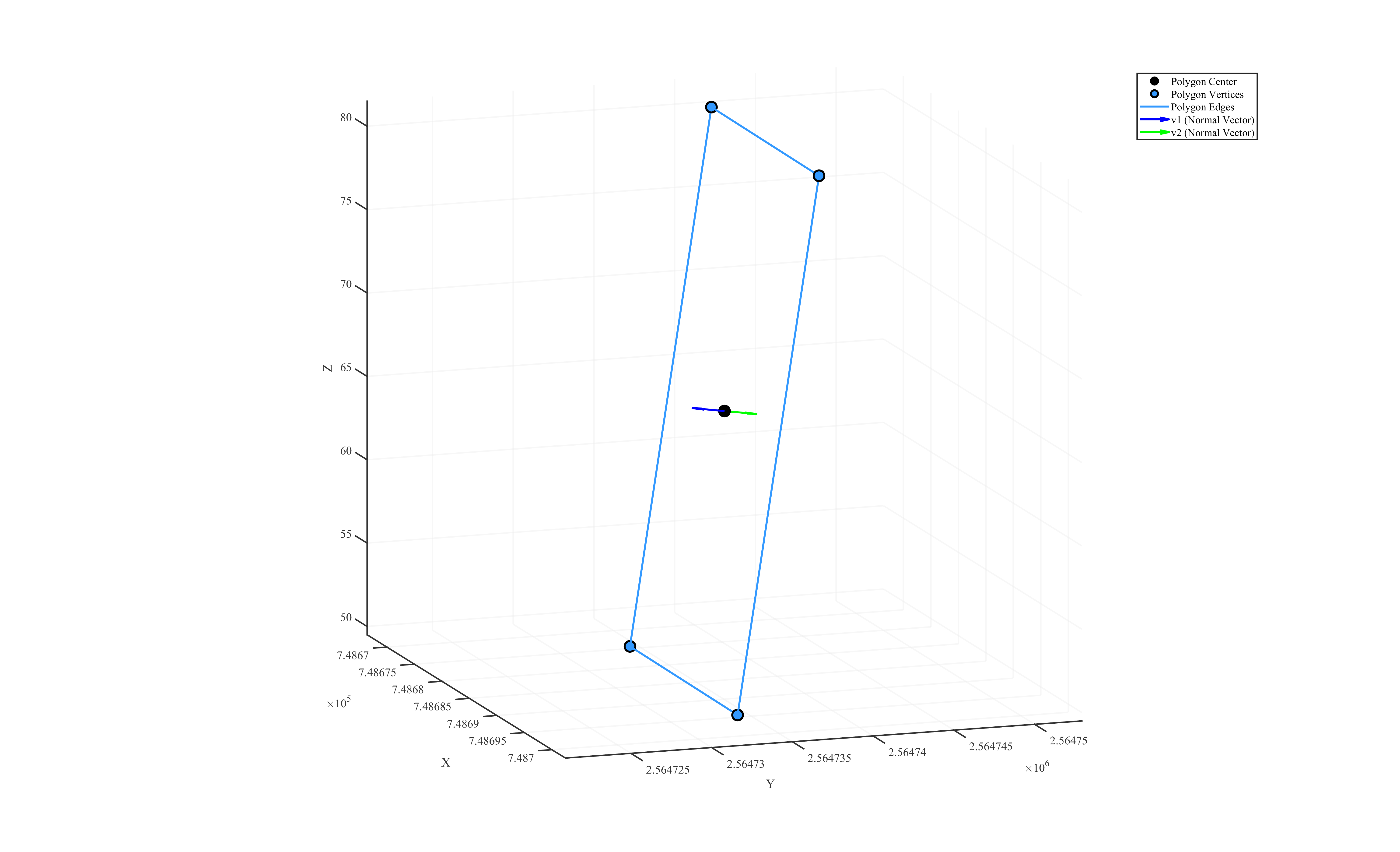

Visualization of the computed plane normals:

×
