Oriented Bounding Box (OBB) Computation

This document outlines a collection of functions for computing oriented bounding rectangles and boxes. Two families of algorithms are provided: those that align the bounding shape with the data’s principal components (PCA-aligned) and those that produce the exact minimum-area (2D) or minimum-volume (3D) enclosure.

---

Overview

The API is organised into the following groups:

• PCA-Aligned Oriented Bounding Boxes/Rectangles (2D & 3D):

  Align the bounding shape with the principal components of the input points. Optionally, the computation can be carried out on the points’ convex hull.

• Minimum Oriented Bounding Boxes/Rectangles (2D & 3D):

  Compute the rectangle of smallest area (2D) or the box of smallest volume (3D) that encloses all points, using the rotating‑calipers algorithm in 2D and geometric optimisation in 3D.

---

2D PCA-Aligned Oriented Bounding Rectangle

Function Signature

// Matrix input
std::pair<Eigen::Matrix<double, 4, 2>, Eigen::RowVector2d> computePCAOBB2D(
    const Eigen::MatrixX2d& points,
    bool useConvexHull = false
);

// Vector input
std::pair<Eigen::Matrix<double, 4, 2>, Eigen::RowVector2d> computePCAOBB2D(
    const std::vector<Eigen::RowVector2d>& points,
    bool useConvexHull = false
);

Parameters

• points: Matrix of 2D points (Eigen::MatrixX2d, one point per row) or a std::vector<Eigen::RowVector2d>.

• useConvexHull (Default: false): If true, the convex hull is computed first and PCA is applied to the hull vertices.

Return Value

• A std::pair containing:

  Vertices: Eigen::Matrix<double, 4, 2> — the four rectangle corners, listed counter‑clockwise.

  Centroid: Eigen::RowVector2d — the rectangle centre.

---

3D PCA-Aligned Oriented Bounding Box

Function Signature

// Matrix input
std::pair<Eigen::Matrix<double, 8, 3>, Eigen::RowVector3d> computePCAOBB3D(
    const Eigen::MatrixX3d& points,
    bool useConvexHull = false
);

// Vector input
std::pair<Eigen::Matrix<double, 8, 3>, Eigen::RowVector3d> computePCAOBB3D(
    const std::vector<Eigen::RowVector3d>& points,
    bool useConvexHull = false
);

Parameters

• points: Matrix of 3D points (Eigen::MatrixX3d, one point per row) or a std::vector<Eigen::RowVector3d>.

• useConvexHull (Default: false): If true, the convex hull is computed first and PCA is applied to the hull vertices..

Return Value

• A std::pair containing:

  Vertices: Eigen::Matrix<double, 8, 3> — the eight cuboid corners.

  Centroid: Eigen::RowVector3d — the cuboid centre.

---

2D Minimum Oriented Bounding Rectangle

Function Signature

// Matrix input
std::pair<Eigen::Matrix<double, 4, 2>, Eigen::RowVector2d> computeMinOBB2D(
    const Eigen::MatrixX2d& points
);

// Vector input
std::pair<Eigen::Matrix<double, 4, 2>, Eigen::RowVector2d> computeMinOBB2D(
    const std::vector<Eigen::RowVector2d>& points
);

Parameters

• points: Matrix of 2D points (Eigen::MatrixX2d, one point per row) or a std::vector<Eigen::RowVector2d>.

Return Value

• A std::pair containing:

  Vertices: Eigen::Matrix<double, 4, 2> — the four rectangle corners, listed counter‑clockwise.

  Centroid: Eigen::RowVector2d — the rectangle centre.

---

3D Minimum Oriented Bounding Box

Function Signature

// Matrix input
std::pair<Eigen::Matrix<double, 8, 3>, Eigen::RowVector3d> computeMinOBB3D(
    const Eigen::MatrixX3d& points
);

// Vector input
std::pair<Eigen::Matrix<double, 8, 3>, Eigen::RowVector3d> computeMinOBB3D(
    const std::vector<Eigen::RowVector3d>& points
);

Parameters

• points: Matrix of 3D points (Eigen::MatrixX3d, one point per row) or a std::vector<Eigen::RowVector3d>.

Return Value

• A std::pair containing:

  Vertices: Eigen::Matrix<double, 8, 3> — the eight cuboid corners.

  Centroid: Eigen::RowVector3d — the cuboid centre.

---

Example Usage

The example below uses randomPoints.csv from the repository.

1. Data Preparation

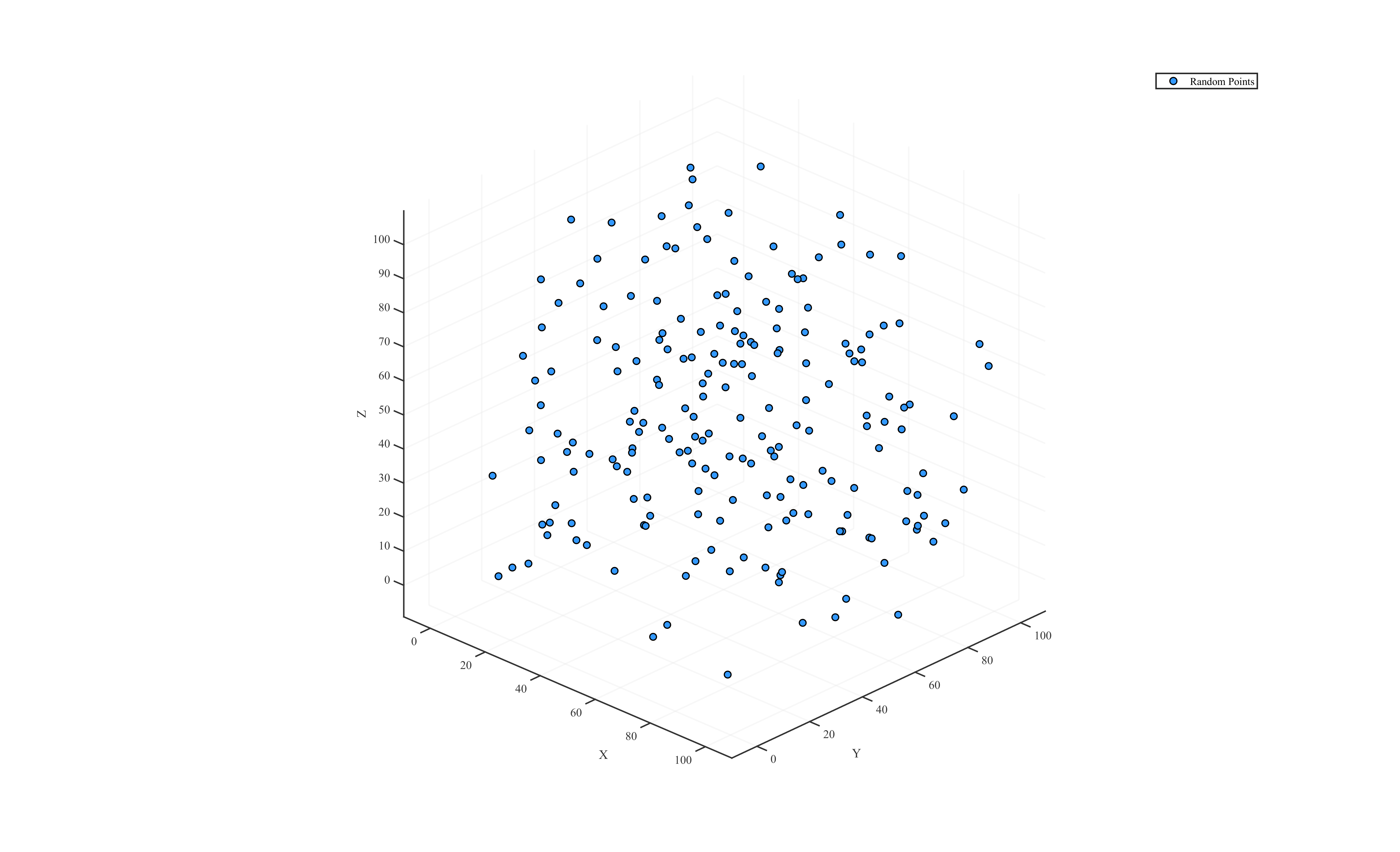

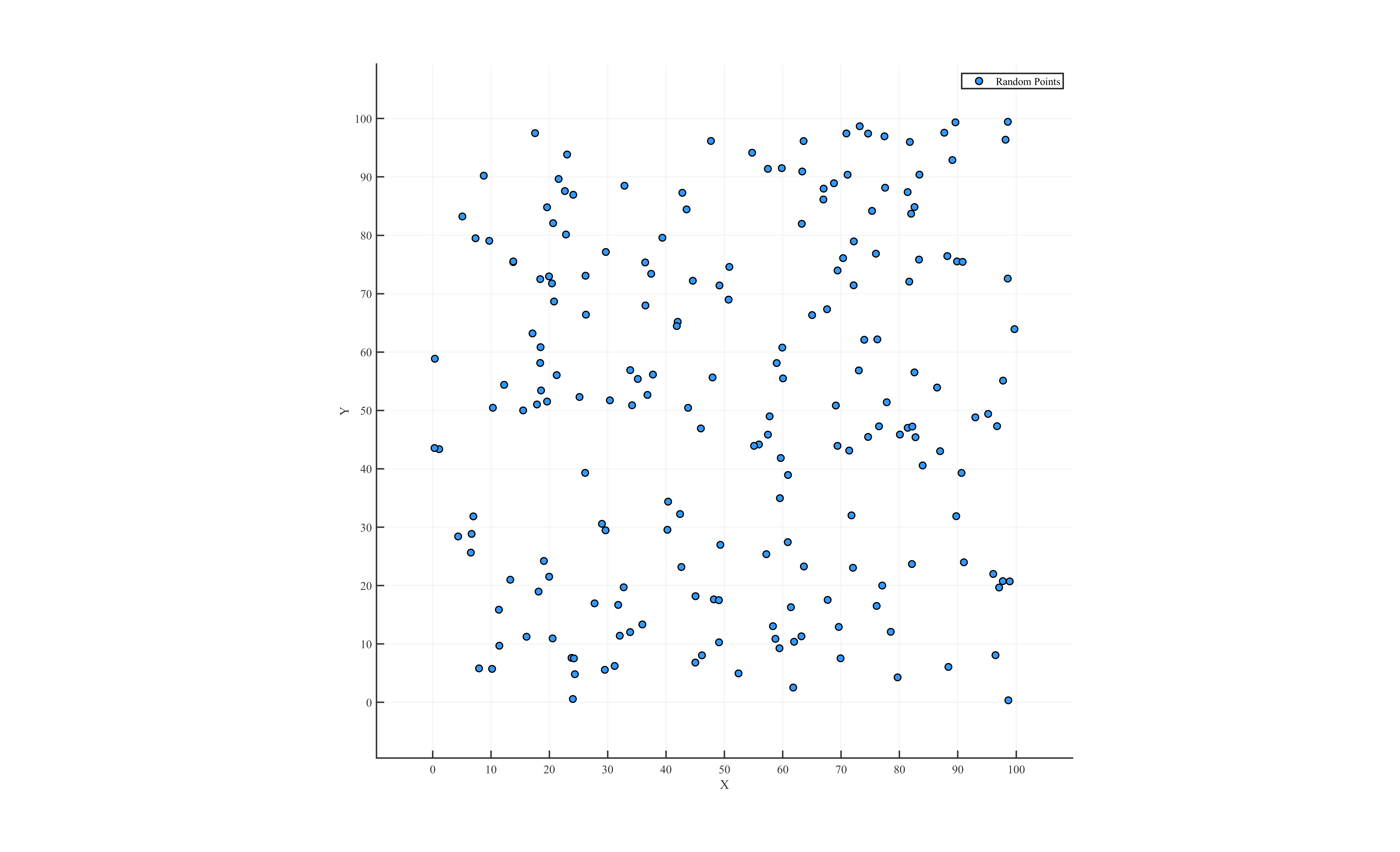

Load 200 random 3D points from a CSV file into an Eigen matrix:

Eigen::Matrix<double, 200, 3> testPointsMat;
std::ifstream file("./testData/randomPoints.csv");
std::string line;
Eigen::Index row = 0;
while (getline(file, line) && row < 200) {
    std::istringstream lineStream(line);
    std::string c1, c2, c3;
    if (std::getline(lineStream, c1, ',') &&
        std::getline(lineStream, c2, ',') &&
        std::getline(lineStream, c3)) {

        testPointsMat.row(row) << stod(c1), stod(c2), stod(c3);
        row++;
    }
}

×

×

2. Running the Bounding-Box Algorithms

With the data ready, compute both PCA-aligned and minimum-area/volume bounding shapes:

{
    // 2D PCA Rectangle vs Minimum Rectangle
    Eigen::Matrix<double, 4, 2> pcaRect = computePCAOBB2D(testPointsMat.leftCols<2>(), true).first;
    Eigen::Matrix<double, 4, 2> mbRect = computeMinOBB2D(testPointsMat.leftCols<2>()).first;

    std::cout << "\n--- PCA 2D Bounding Rectangle (XY) ---\n";
    std::cout << pcaRect.format(Eigen::FullPrecision) << "\n";

    std::cout << "\n--- Minimum 2D Bounding Rectangle (XY) ---\n";
    std::cout << mbRect.format(Eigen::FullPrecision) << "\n";
}

{
    // 3D PCA Box vs Minimum Box
    Eigen::Matrix<double, 8, 3> pcaBox = computePCAOBB3D(testPointsMat, true).first;
    Eigen::Matrix<double, 8, 3> mbBox = computeMinOBB3D(testPointsMat).first;

    std::cout << "\n--- PCA 3D Bounding Box ---\n";
    std::cout << pcaBox.format(Eigen::FullPrecision) << "\n";

    std::cout << "\n--- Minimum 3D Bounding Box ---\n";
    std::cout << mbBox.format(Eigen::FullPrecision) << "\n";

}

3. Results

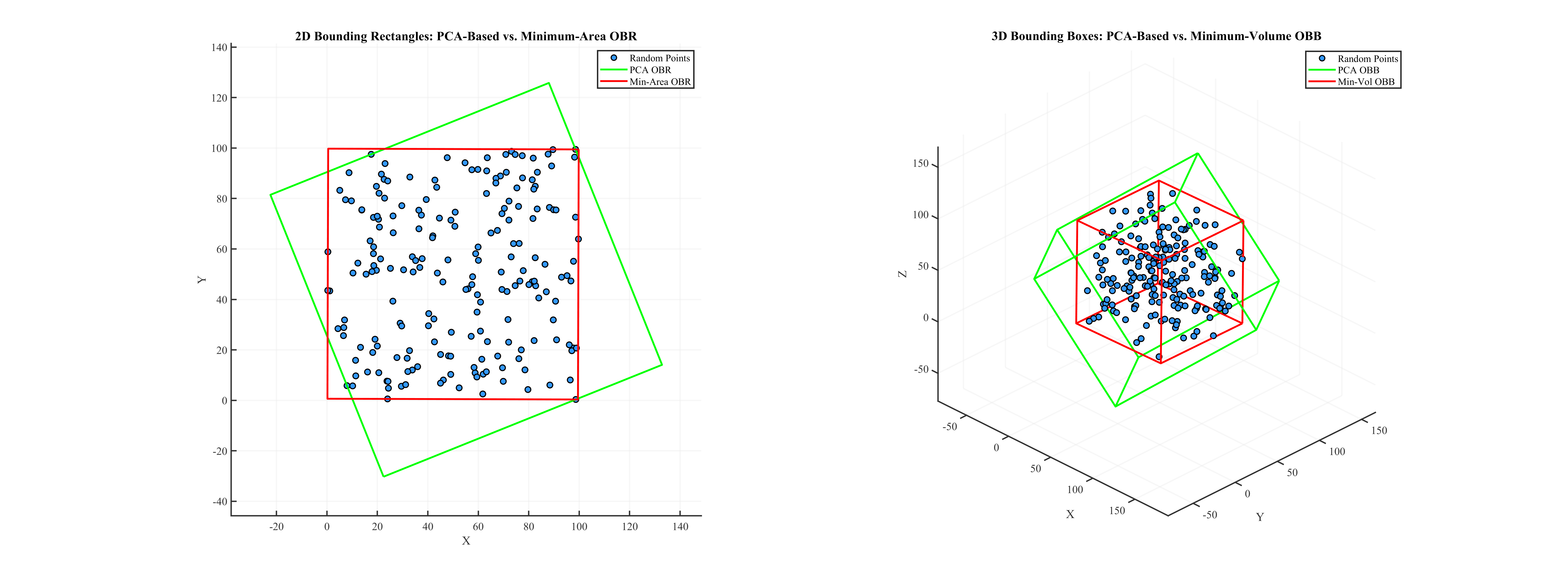

The figure below compares the two approaches:

×

• PCA‑aligned shapes typically enclose slightly more area or volume than the true minimum because they are restricted to the principal axes.

💡Tip: Use the PCA‑based OBB for its speed and suitability for large point clouds. Select the minimum‑area/volume OBB only when the exact smallest enclosure is required.

Complete Implementation

#include "LiteGeometry.h"

int main() {

    Eigen::Matrix<double, 200, 3> testPointsMat;
    std::ifstream file("./testData/randomPoints.csv");
    std::string line;
    Eigen::Index row = 0;
    while (getline(file, line) && row < 200) {
        std::istringstream lineStream(line);
        std::string c1, c2, c3;
        if (std::getline(lineStream, c1, ',') &&
            std::getline(lineStream, c2, ',') &&
            std::getline(lineStream, c3)) {

            testPointsMat.row(row) << stod(c1), stod(c2), stod(c3);
            row++;
        }
    }

    {
        // 2D PCA Rectangle vs Minimum Rectangle
        Eigen::Matrix<double, 4, 2> pcaRect = computePCAOBB2D(testPointsMat.leftCols<2>(), true).first;
        Eigen::Matrix<double, 4, 2> mbRect = computeMinOBB2D(testPointsMat.leftCols<2>()).first;

        std::cout << "\n--- PCA 2D Bounding Rectangle (XY) ---\n";
        std::cout << pcaRect.format(Eigen::FullPrecision) << "\n";

        std::cout << "\n--- Minimum 2D Bounding Rectangle (XY) ---\n";
        std::cout << mbRect.format(Eigen::FullPrecision) << "\n";
    }

    {
        // 3D PCA Box vs Minimum Box
        Eigen::Matrix<double, 8, 3> pcaBox = computePCAOBB3D(testPointsMat, true).first;
        Eigen::Matrix<double, 8, 3> mbBox = computeMinOBB3D(testPointsMat).first;

        std::cout << "\n--- PCA 3D Bounding Box ---\n";
        std::cout << pcaBox.format(Eigen::FullPrecision) << "\n";

        std::cout << "\n--- Minimum 3D Bounding Box ---\n";
        std::cout << mbBox.format(Eigen::FullPrecision) << "\n";

    }

    return 0;
}
